- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
- Product Segment
AX6100 ultimate AX performance : 400 Mbps+ 867 Mbps+ 4804 Mbps
- Coverage
Very large homes
- Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11n 256QAM : up to 400 Mbps
802.11ac : up to 867 Mbps
802.11ax (5GHz) : up to 4804 Mbps
- Antenna
Internal antenna x 2
External antenna x 4
- Transmit/Receive
2.4 GHz 2 x 2
5 GHz-1 2 x 2
5 GHz-2 4 x 4
- Memory
256 MB Flash
512 MB RAM
- Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
20/40/80/160 MHz bandwidth
- Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2
- Encryption
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
- Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
- VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
- WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
- Ports

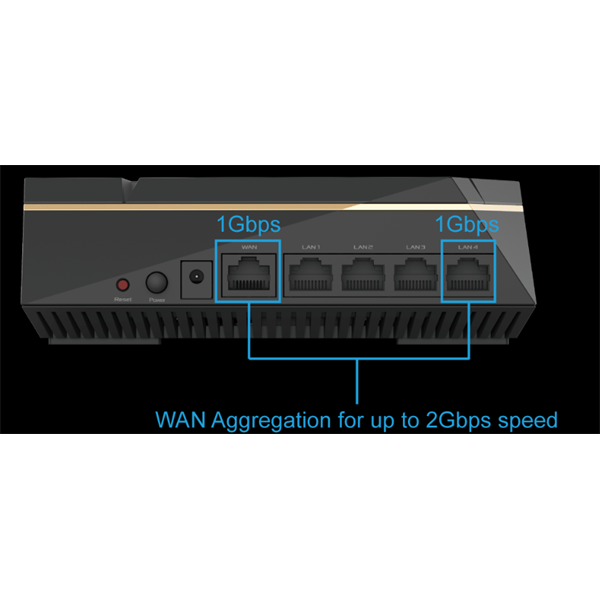

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for BaseT for LAN x 4
USB 2.0 x 1
USB 3.1 Gen 1 x 1
- Features
Router app
MU-MIMO
Traffic Analyzer
Adaptive QoS
WTFast Gamers Private Network
AiProtection Pro
Parental Control
Guest Network :
VPN server : IPSec Pass-Through, PPTP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Enhanced media server (AiPlayer app compatible)
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA
- Button
WPS Button, Reset Button, Power Button
- LED Indicator
Wi-Fi x 3
Power x 1
LAN x 1
WAN x 1
- Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
- OS Support
Windows® 10 64-bit
Windows® 8.1
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux
- Dimensions
15.5 x 15.5 x 5.26 cm (WxDxH)
- Weight
651 g
- Router Special Features
AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
- Operation mode
Wireless router mode
Range extender mode
Access point mode
Media bridge mode
