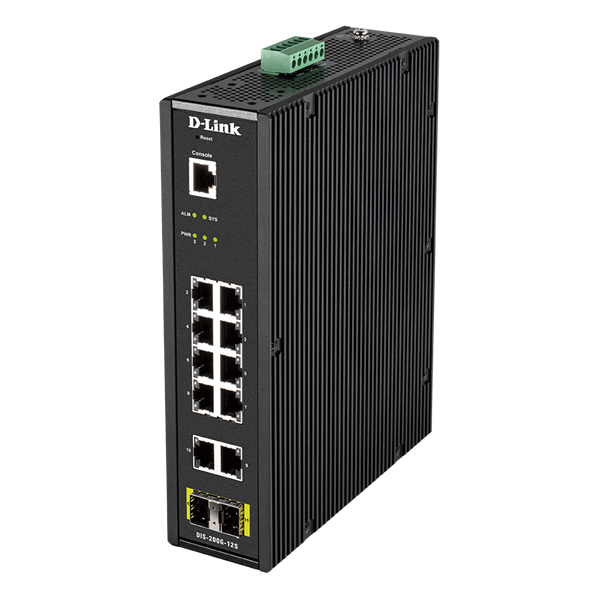

D-Link Ipari Switch 12 Port - 10x1000Mbs + 2xSFP + 1xRJ45 Console Port - DIS-200G-12S Smart Managed RM L2 Fanless

General

Hardware Version
DIS-200G-12S:  A1
DIS-200G-12SW:  A1
DIS-200G-12PS:  A1
DIS-200G-12PSW:  A1

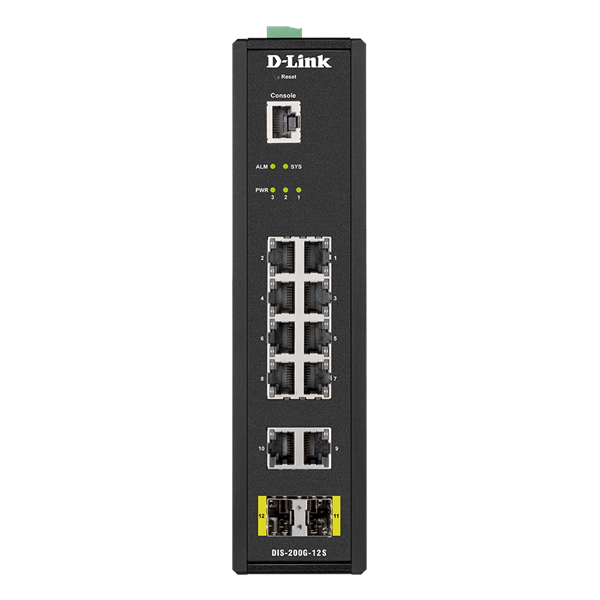

Number of Ports
DIS-200G-12S and DIS-200G-12SW:
• 10 x 10/100/1000BASE-T ports
• 2 x SFP ports
• 1 x RJ-45 Console port

DIS-200G-12PS and DIS-200G-12PSW:
• 8 x 10/100/1000BASE-T PoE ports
• 2 x 10/100/1000BASE-T ports
• 2 x SFP ports
• 1 x RJ-45 Console port

Port Functions
• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• IEEE 802.3z for Gigabit fiber
• IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS/DIS-200G-12PSW)
• IEEE 802.3az-compliant

Media Interface Exchange
• Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity
• 24 Gbps

Maximum Forwarding Rate
• 17.85 Mpps

MAC Address Table Size
• Up to 8K entries

Transmission Method
• Store-and-forward

PoE (DIS-200G-12PS and DIS-200G-12PSW only)

PoE Standards
• IEEE 802.3af/at

PoE Capable Ports
• Ports 1 to 8

PoE Power Budget
• Max. 240 W1

Physical

Diagnostic LEDs
DIS-200G-12S and DIS-200G-12SW:
• SYS
• ALM
• PWR1/2/3
• Link/Activity/Speed

DIS-200G-12PS and DIS-200G-12PSW:
• SYS
• ALM
• PWR1/2/3
• Link/Activity/Speed
• PoE status
• PoE budget

Power Input
DIS-200G-12S and DIS-200G-12SW:

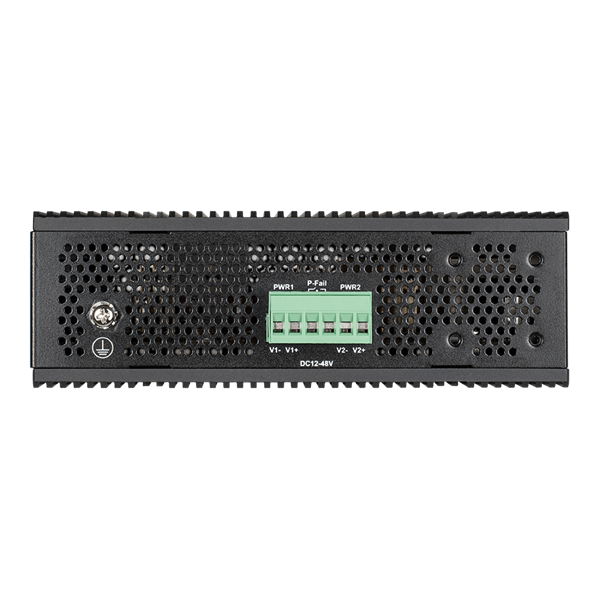

• 12 to 48 V DC terminal block dual input

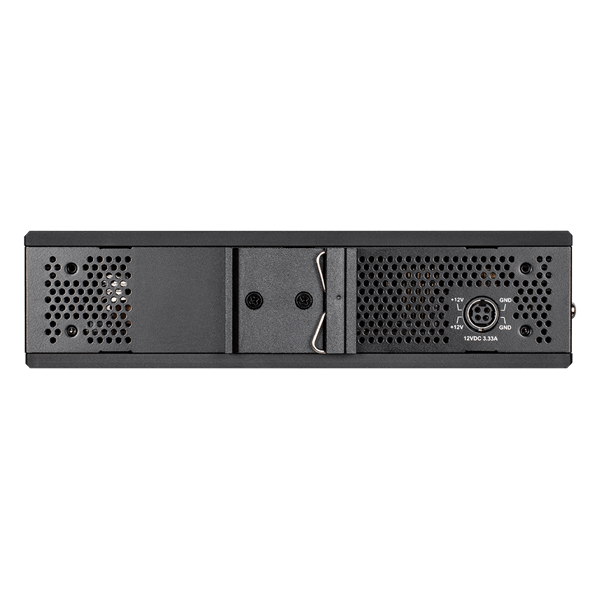

• 12 V DC 4-pin DIN single power input

DIS-200G-12PS and DIS-200G-12PSW:
• 48 to 54 V DC terminal block dual input
• 54 V DC 4-pin DIN single power input

Power Consumption
DIS-200G-12S and DIS-200G-12SW:
• Maximum: 10.26 W
• Standby: 5.94 W

DIS-200G-12PS and DIS-200G-12PSW:
• Maximum: 260 W (PoE on)
• Maximum: 10.8 W (PoE off)
• Standby: 7.02 W

Alarm Relay
• 1 A at 24 V

Heat Dissipation
DIS-200G-12S and DIS-200G-12SW:
• 35.01 BTU/hr

DIS-200G-12PS and DIS-200G-12PSW:
• 887.16 BTU/hr (PoE on)
• 36.85 BTU/hr (PoE off)

Weight
DIS-200G-12S and DIS-200G-12SW:
• 1.63 kg (3.59 lbs)

DIS-200G-12PS and DIS-200G-12PSW:
• 1.76 kg (3.88 lbs)

Dimensions
• 210 x 171.2 x 48 mm (8.27 x 6.74 x 1.89 inches)

Ventilation
• Fanless

Operating Temperature
DIS-200G-12S:
• -40 to 65 °C (-40 to 149 °F)
DIS-200G-12SW:
• -40 to 75 °C (-40 to 167 °F)
DIS-200G-12PS:
• -40 to 65 °C (-40 to 149 °F)
DIS-200G-12PSW:
• -40 to 75 °C (-40 to 167 °F)

Storage Temperature
• -40 to 85 °C (-40 to 185 °F)

Operating Humidity
• 0% to 95% RH, non-condensing

Storage Humidity
• 0% to 95% RH, non-condensing

Material
• IP30-rated metal casing

Installation
• DIN rail/wall/rack mountable

MTBF
DIS-200G-12S:
• 276,773 hours
DIS-200G-12SW:
• 219,314 hours
DIS-200G-12PS:
• 213,112 hours
DIS-200G-12PSW:
• 156,452 hours

Certifications
• CE, FCC, BSMI

Safety
• UL60950-1

EMI
• CISPR 22, FCC Part 15B Class A

EMS
• EN 61000-4-2 ESD
• EN 61000-4-3 RS
• EN 61000-4-4 EFT
• EN 61000-4-5
• EN 61000-4-6 CS
• EN 61000-4-8

Environmental Tests
• IEC 60068-2-27 Shock
• IEC 60068-2-32 Freefall
• IEC 60068-2-6 Vibration

Software Features

VLAN
• IEEE 802.1Q tagged VLAN
• Port-based VLAN
• Auto-Surveillance VLAN 2.0 (ASV 2.0)
• Voice VLAN
• Asymmetric VLAN
• VLAN group
   • Supports 128 static VLAN groups
   • Max. 4094 VIDs
• GVRP

L2 Features
• Flow Control
   • IEEE 802.3x Flow Control
   • HDL Blocking Prevention
• Jumbo frames up to 9600 bytes
• IGMP Snooping
   • IGMP v1/v2/v3
   • Supports up to 256 IGMP snooping groups (shared with MLD snooping)
   • IGMP Snooping Querier
• MLD Snooping
   • MLD snooping v1/v2
   • Supports up to 256 MLD snooping groups (shared with IGMP snooping)
   • MLD Snooping Querier
• IEEE 802.3ad Link Aggregation
   • Supports 6 groups per device, 8 ports per group
• Ethernet Ring Protection Switching (ERPS)
   • G.8032 ERPSv1 single ring
• Loopback detection
• LLDP
• Port mirroring
   • One-to-One
   • Many-to-One
• Statistics
   • Tx Ok
   • Tx Error
   • Rx Ok
   • Rx Error
• Spanning Tree Protocol (STP)
   • IEEE 802.1D STP
   • IEEE 802.1w RSTP
   • IEEE 802.1s MSTP

Quality of Service (QoS)
• IEEE 802.1p Quality of Service (QoS)
   • 4 queues per port
   • Queue handling
   • Strict Priority Queue (SPQ)
   • Weighted Round Robin (WRR)
   • Port-based bandwidth control (rate limiting)
   • Ingress: 8 kbps
   • Egress: 64 kbps

Security
• D-Link Safeguard
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS attack prevention
• SSL
• Port security

AAA
• Web-based access control
• RADIUS

Management
• Web-based UI (supports IPv4/IPv6)
• Client-based D-Link Network Assistant (DNA)
• Industry-standard CLI
• SNTP
• SNMP v1/v2c/v3
• SNMP trap
• Telnet server
• System Log
• DHCP client
• TFTP client
• LLDP
• D-Link Discovery Protocol (DDP)
• Dual images
• Dual configurations

OAM
• Cable diagnostics
• Optical transceiver Digital Diagnostics Monitoring (DDM)

Green Technology
• Power saving by:
   • Link status detection
   • LED shut-off
   • Port shut-off
   • System hibernation
   • IEEE 802.3az Energy-Efficient Ethernet (EEE)

MIB/RFC Standards
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1213 MIB II
• RFC1493 Bridage MIB
• RFC1907 SNMPv2 MIB
• RFC2668 802.3 MAU MIB
• RFC4133 Entity MIB
• RFC4363 IEEE 802.1p MIB
• ZoneDefense MIB
• Private MIB

Warranty
• Limited lifetime warranty²

Order Information
DIS-200G-12S   10 x 10/100/1000 Mbps ports + 2 x SFP ports switch
DIS-200G-12SW   10 x 10/100/1000 Mbps ports + 2 x SFP ports switch with -40 to 75 °C operating range
DIS-200G-12PS   8 x 10/100/1000 Mbps PoE ports + 2 x 10/100/1000 Mbps ports + 2 x SFP ports switch
DIS-200G-12PSW   8 x 10/100/1000 Mbps PoE ports + 2 x 10/100/1000 Mbps ports + 2 x SFP ports switch with -40 to 75 °C operating range

DIS-200G Series Accessories
DIS-RK200G   Standard 19” rack mounting kit
DIS-PWR40AC   40 W, 100 ~ 240 V AC input, 12 V DC output power adapter with 60 °C operating temperature
DIS-PWR180AC   180 W, 100 ~ 240 V AC input, 54 V DC output power adapter with 60 °C operating temperature
DIS-200G-RPK40   Rack mounting kit and 40 W, 100 ~ 240 V AC input, 12 V DC output power adapter with 60 °C operating temperature
DIS-200G-RPK180   Rack mounting kit and 180 W, 100 ~ 240 V AC input, 54 V DC output power adapter with 60 °C operating temperature

Optional SFP Transceivers
DEM-310GT   1000BASE-LX, single-mode, 10 km, 0 to 70 °C operating temperature
DIS-S310LX   1000BASE-LX, single-mode, 10 km, -40 to 85 °C operating temperature
DEM-311GT   1000BASE-SX, multi-mode, 550 m, 0 to 70 °C operating temperature
DIS-S301SX   1000BASE-SX, multi-mode, 550 m, -40 to 85 °C operating temperature

Optional Accessories
DPE-SP110 Outdoor PoE Ethernet Surge Protector
DPE-SP110I Ethernet Surge Protector
