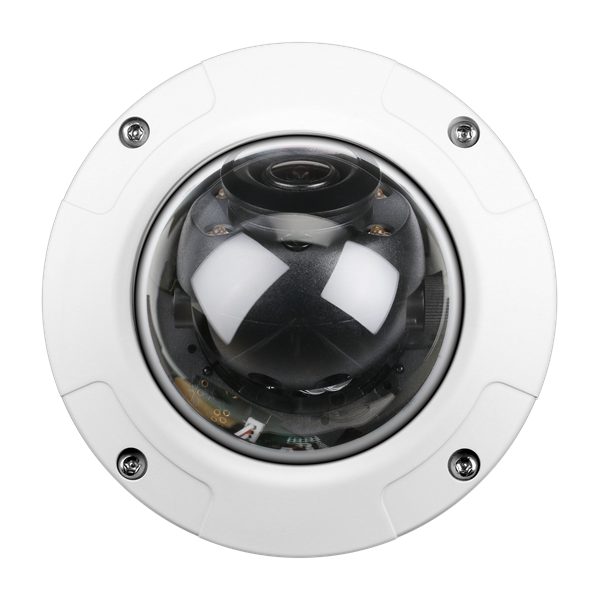

D-Link Kamera - DCS-4633 - Vigilance 3 MP 1920x1080 Vandálbiztos Vízálló Wired POE Fix Kültéri Dome

• Features:

  Exceptional Video Quality

• 1/3” megapixel progressive CMOS sensor
• HD resolution of 2048 x 1536
• Wide Dynamic Range image enhancement
• H.265, H.264, and MJPEG codec support for streaming and recording
• Motion detection
• Privacy mask

• Outdoor Placement

• Built-in IR LED illuminator with a 20-meter range for use in dark areas
• Range of mounting options for flexible placement
• Rugged IP66 weatherproof housing
• IK10 vandal-proof housing protects the camera from intruders

• Flexibility

• microSD card slot for onboard storage¹
• 10/100 Fast Ethernet port with Power over Ethernet (PoE) ensures easy and flexible integration into your network

Specifications:

Camera

Camera Hardware Profile

• 1/3” 3 Megapixel Progressive CMOS Sensor
• 60 ft IR Illumination Distance
• Minimum illumination
  • .01 Lux/F1.85 Color mode
  • 0.008 Lux/F1.85 Black and White mode
• Built-in Infrared-Cut Removable (ICR) Filter module
• 10x digital zoom
• Minimum object distance 0.5M
• Focal length: 2.8mm
• Aperture F1.85
• Angle of view:
  • 105° horizontal
  • 80° vertical
  • 137° diagonal
• Adjusted Angle (non-motorized):
  • Horizontal: 350°
  • Vertical: 60°

Camera Housing

• IP66 compliant weatherproof housing
• IK10 compliant vandal-proof housing

Image Features

• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• Wide Dynamic Range (WDR)
• Auto White Balance (AWB)
• Auto Gain Control (AGC)
• Configurable privacy mask zones
• Configurable shutter speed, brightness, saturation, contrast, sharpness, and 3D filter

Video Compression

• Simultaneous H.265/H.264/MJPEG format compression
• H.265/H.264/MJPEG multicast streaming
• JPEG for still images

Video Resolution

• 16:9 - 1920 x 1080, 1280 x 720, 640 x 360 up to 30 fps
• 4:3 - 2048 x 1536, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480 up to 30 fps

External Device Interface

• 10/100 BASE-TX Ethernet port with PoE (802.3af)
• microSD card slot (SD/SDHC/SDXC)
• Supports 802.3af PoE

Network

Network Protocols

• IPv6
• IPv4
• ARP
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP / HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP / RTSP/ RTCP
• IP filtering
• QoS/DSCP
• CoS
• Multicast
• ONVIF compliant

Security

• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption

System Management

System Requirements for Web Interface

• Operating System: Windows 10 / 8 / 7
• Browser: Internet Explorer, Firefox or Chrome

Event Management

• Motion detection
• Tamper detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup

Remote Management

• Take snapshots/video clips and save to local hard drive or NAS via web browser
• Configuration interface accessible via web browser

D-ViewCam™ System Requirements

• Operating System: 32-bit Windows 8/7 (SP1)
• Operating System: 64-bit Windows 10/8/7 (SP1) / Server 2012 / Server 208 R2
• Web Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

• Remote management/control of up to 32 cameras
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording options

General

Weight

• .8 lbs (365 grams) ±5%

Power Requirement

• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC 1.5A

Power Consumption

• 6 Watts ±5%(PoE)

Temperature

• Operating: -22° to 124° F (-30° to 50° C)
• Storage: -4 to 158° F (-20° to 70° C)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• CE
• CE LVD
• FCC
• C-Tick
