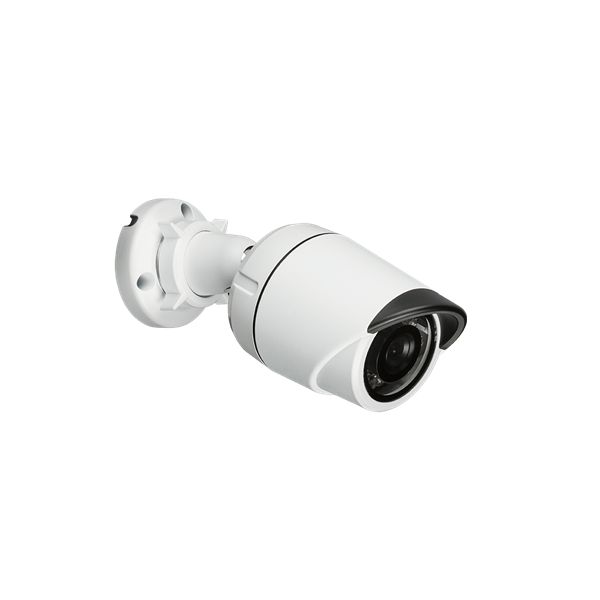

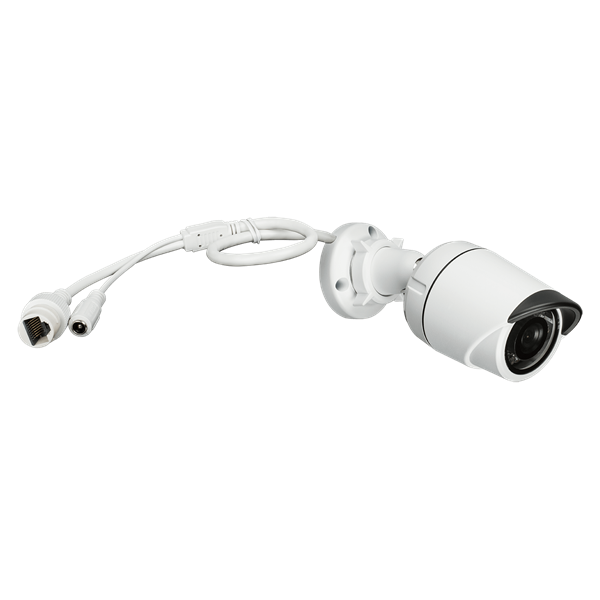

D-Link Kamera - DCS-4703E - Vigilance 3 MP Full HD 1920x1080 Wired POE Fix Kültéri Mini Bullet

  • Gyártó: Dlink
  • Cikkszám: DCS-4703E
  • Készlet információ: Rendelésre
  • Átvétel: érkezés +1 munkanap

56 453 Ft

Bruttó ár: 72 687 Ft

Kívánságlistára
Összehasonlítás

Leírás

Functions & Features

Features

1080p Full HD Camera

  • 1/3” 3-megapixel progressive CMOS sensor
  • Fixed lens with focal length of 3.6 mm and F1.8 aperture
  • Up to 1080p resolution at 30 fps
  • H.264, MJPEG codec support for streaming and recording

Outdoor placement

  • Built-in IR LED illuminator providing up to 20 metres night vision
  • Climate resilient and weatherproof
  • Operates between -30 °C and 50 °C
  • Protective bracket for cables
  • IP66 certified housing
  • Glare reducing sun shield
  • Wide Dynamic Range image enhancement
  • 3DNR reduces image noise in low-light environments

Flexibility and Connectivity

  • 10/100 Fast Ethernet port with PoE (Power over Ethernet) ensures easy integration into your network

Technical Specifications

Camera

Camera Hardware Profile

  • 1/3” 3 megapixel progressive CMOS sensor
  • 20 metre IR illumination distance
  • Minimum illumination:
    • Day Mode: 0.2 lux
    • Night Mode (LEDs off): 0.1 lux
    • Night Mode (LEDs on): 0 lux
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 10x digital zoom
  • Minimum object distance 0.5 m
  • Focal length: 3.6 mm
  • Aperture: F1.8
  • Angle of view:
    • (H) 70°
    • (V) 40°
    • (D) 80°

Camera Housing

  • IP-66 compliant weatherproof housing

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation, contrast, and sharpness
  • WDR
  • 3D filter

Video Compression

  • Simultaneous H.264/MJPEG format compression
  • H.264/MJPEG multicast streaming
  • JPEG for still images

Video Resolution

  • 16:9
    • 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps
  • 4:3
    • 2048 x 1536 up to 15 fps
    • 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480 up to 30 fps

External Device Interface

  • 10/100 BASE-TX Fast Ethernet port
  • Supports 802.3af PoE

Network

Network Protocols

  • IPv6
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS
  • Multicast
  • SNMP
  • ONVIF compliant

Security

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP authentication

System Management

System Requirements for Web Interface

  • Browser: Internet Explorer, Firefox, Chrome, or Safari

Event Management

  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Take snapshots/video clips and save to local hard drive
  • Configuration interface accessible via web browser

D-ViewCam™ System Requirements

  • Operating System: Microsoft Windows 10/8/7/Vista
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen

General

Weight

  • 430 g ± 5 %

External Power Adapter

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 12 V DC 1.5 A

Power Consumption

  • 6.4 watts ± 5 % (PoE)

Temperature

  • Operating: -30 to 50 °C (-22 to 122 °F)
  • Storage: -20 to 70° C (-4° to 158° F)

Humidity

  • Operating: 20 % to 80 % non-condensing
  • Storage: 5 % to 95 % non-condensing

Certifications

  • CE
  • CE LVD
  • FCC
  • C-Tick

Dimensions

  • Φ65 × 164mm
