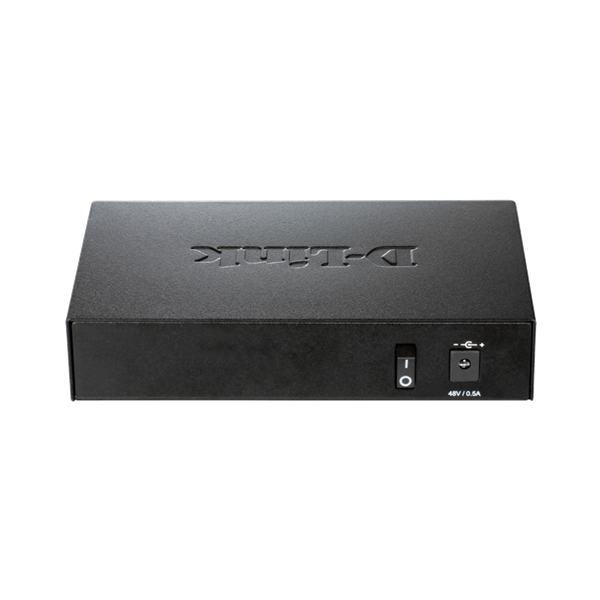

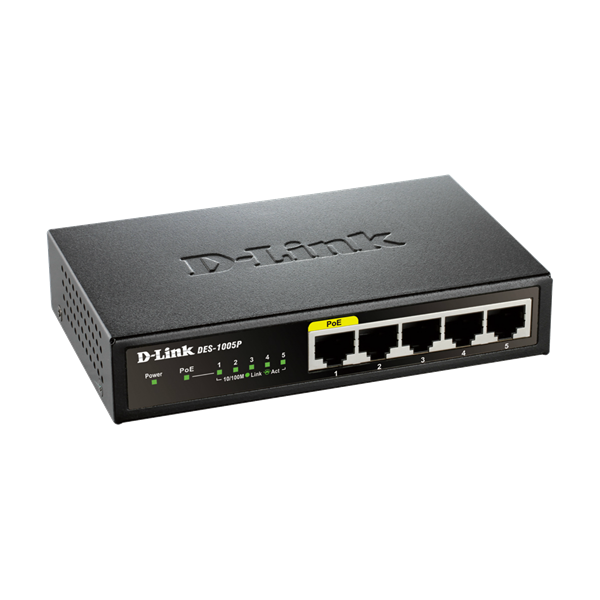

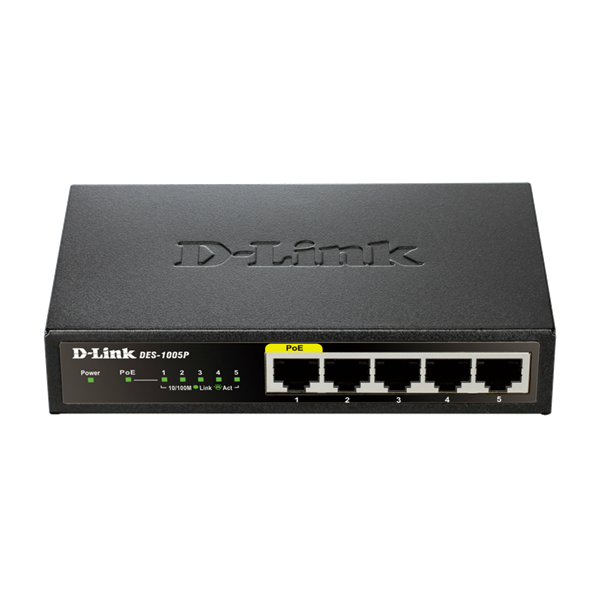

D-Link Switch - DES-1005P - 5x100Mbps 4 Port POE 60W POE Budget Desktop Fémházas Fanless Unmanaged

  • Gyártó: Dlink
  • Cikkszám: DES-1005P/E
  • Készlet információ: Raktáron
  • Átvétel: +1 munkanap

12 721 Ft

Bruttó ár: 16 155 Ft

Kívánságlistára
Összehasonlítás

Technical Specifications:

D-Link DES-1005P Specifications
General
Number of Ports Five 10/100 Mbps Ports including one PoE enabled
Switching Capacity 1Gbps
Standards IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
PoE Features Supports IEEE 802.3af
Supplies up to 15.4 watts of power to PD
Data Transfer Rates Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
Network Cables 10BASE-T:
  • UTP CAT 3, 4, 5/5e (100 m max)
  • EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max
Transmission Method Store-and-forward
MAC Address Table 2k Entries per device
MAC Address Learning Automatic update
Packet Filtering/Forwarding Rates Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer 64 KBytes per device
D-Link Green IEEE 802.3az Energy Efficient Ethernet (EEE)
Link status detection power saving
Cable length detection power saving
Physical
Power Inputs Switching 48 V/0.5 A Level V power adapter
Power Consumption Power On (Standby):
DC input: 0.9 watt
AC input: 1.8 watts

Maximum (PoE Off):
DC input: 2.05 watts
AC input: 2.7 watts

Maximum (PoE On):
DC input: 17.29 watts
AC input: 20.2 watts
MTBF 324,616 hours
Operating Temperature 32 to 104 °F (0 to 40 °C)
Storage Temperature 104 to 158 °F (-40 to 70 °C)
Storage Humidity 0% to 95% RH non-condensing
Dimensions 5.5 x 3.3 x 1.1 inches (140 x 85 x 28 mm)
Certifications FCC Class B
ICES-003 Class B
cUL
