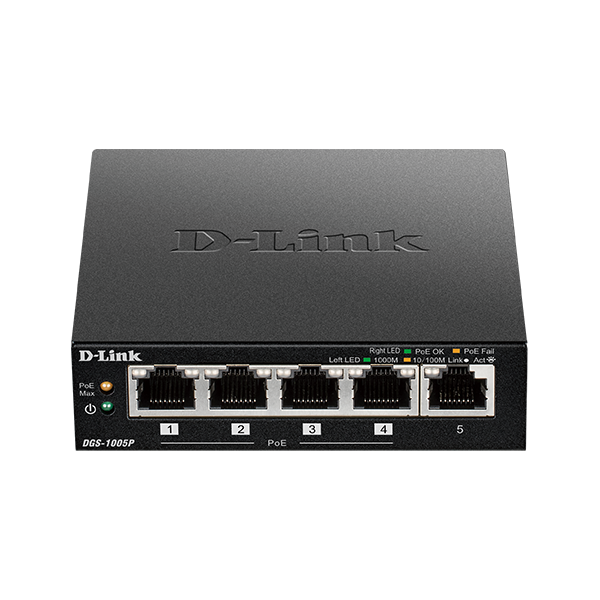

D-Link Switch - DGS-1005P - 5x1000Mbps 4 Port POE 60W POE Budget Desktop Fémházas Fanless Unmanaged

• 5x Gigabit Ethernet ports (4x PoE+ ports)
• PoE+, 60W power budget
• 10 Gbps switching fabric capacity
• Plug & Play simplicity for easy installation

General

Hardware version = A1

Size
• Desktop

Interfaces
• 5 10/100/1000BASE-T ports

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x flow control
• IEEE 802.1p QoS
• ANSI/IEEE 802.3 NWay auto-negotiation

Media Interface Exchange
• Auto MDI/MDI-X adjustment on all ports

Performance

Switching Fabric
• 10 Gbps

Transmission Method
• Store-and-forward

Data Transfer Rates
• Gigabit Ethernet
     • 2000 Mbps (full-duplex)
• Fast Ethernet
     • 100 Mbps (half-duplex)
     • 200 Mbps (full-duplex)
• Ethernet
     • 10 Mbps (half-duplex)
     • 20 Mbps (full-duplex)

Packet Filtering / Forwarding Rates
• 7.44 Mpps

MAC Address Table
• 2K entries per device

RAM Buffer
• 64 KB per device

PoE

PoE Standards
• IEEE 802.3af
• IEEE 802.3at

PoE-Capable Ports
• Ports 1 to 4

Power Budget
• 60 W (30 W max. per PoE port)

LEDs

• Power
• Power / PoE Max (per unit)
• Power / Status (per port)
• Activity / Link and Speed (per port)

Physical

Weight
• 0.26 kg (9.17 oz)

Dimensions
• 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in)

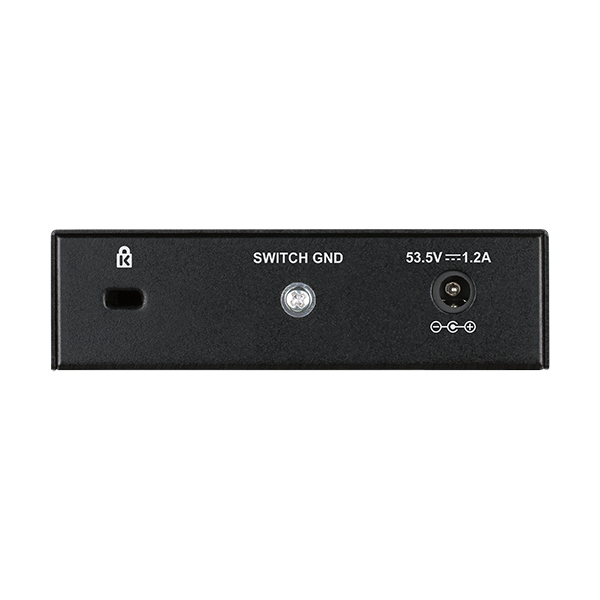

DC Input
• External 53.5 V / 1.2 A power adapter

Power Consumption
• 64.5 W maximum (PoE on)
• 3.08 W maximum (PoE off)
• 0.54 W (standby)

Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (-40 to 158 °F)

Humidity
• Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing

Certifications

Safety
• cUL
• CB
• LVD
• BSMI

EMI/EMC
• CE
• BSMI
• FCC
• VCCI
• RCM

Ordering Information
DGS-1005P 5-Port Gigabit Switch with 4 PoE Ports
