SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.

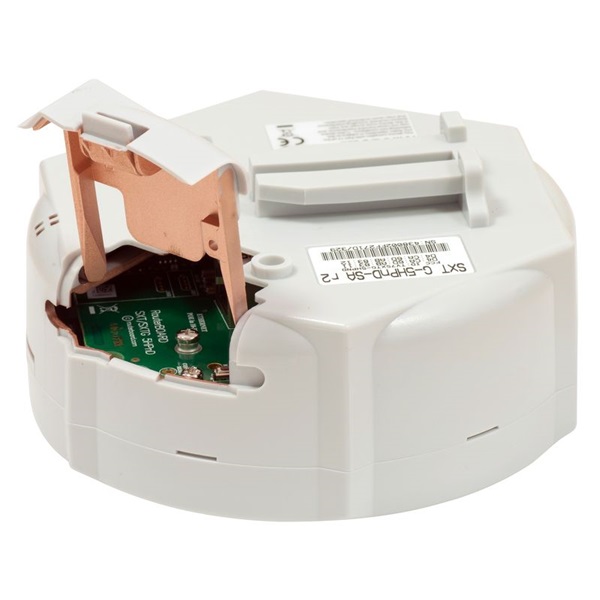

Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.

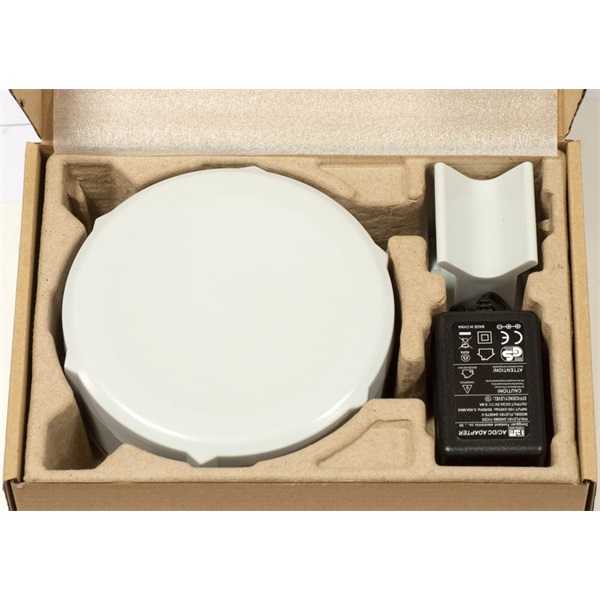

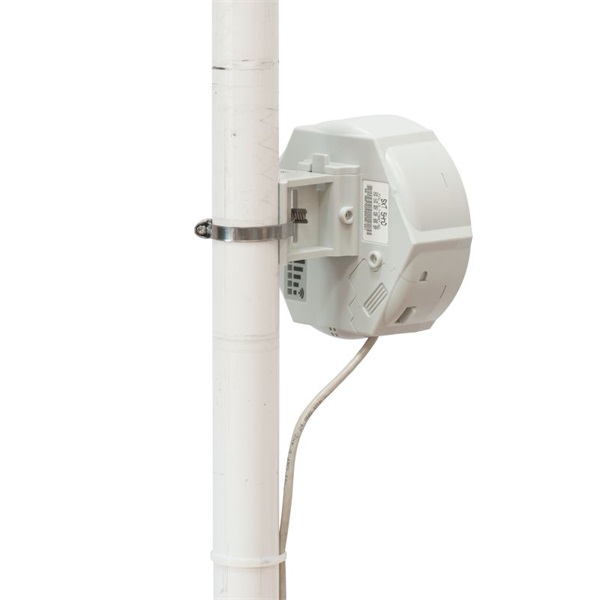

Box contains: SXT wireless device with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide
- RBSXTG-5HPnD-SAr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBSXTG-5HPnD-SAr2 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RBSXTG-5HPnD-SAr2 |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
140x140x56mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-30°C to 70°C |
| |
|
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
6-30 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
11 W |
Wireless
| Details |
| Antenna gain dBi for 5 GHz |
14 |
| Wireless 5 GHz standards |
802.11a/n |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz chip model |
AR9344 |
| Wi-Fi generation |
4 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
30 |
-96 |
| 54MBit/s |
27 |
-80 |
| MCS0 |
30 |
-95 |
| MCS7 |
26 |
-73 |
Included parts
