MIKROTIK Wireless Access Point RBwAPG-5HacT2HnD, 802.11a/b/g/n/ac (wAP ac)

  • Gyártó: Mikrotik
  • Cikkszám: RBWAPG-5HACT2HND
  • Készlet információ: Rendelésre
  • Átvétel: érkezés +1 munkanap

22 578 Ft

Bruttó ár: 28 674 Ft

Kívánságlistára
Összehasonlítás

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.

The device has one Gigabit Ethernet port, it supports 802.11a/b/g/n/ac wireless protocols and can work at both the 2.4GHz and 5GHz frequencies simultaneously. It looks unobtrusive and sleek.

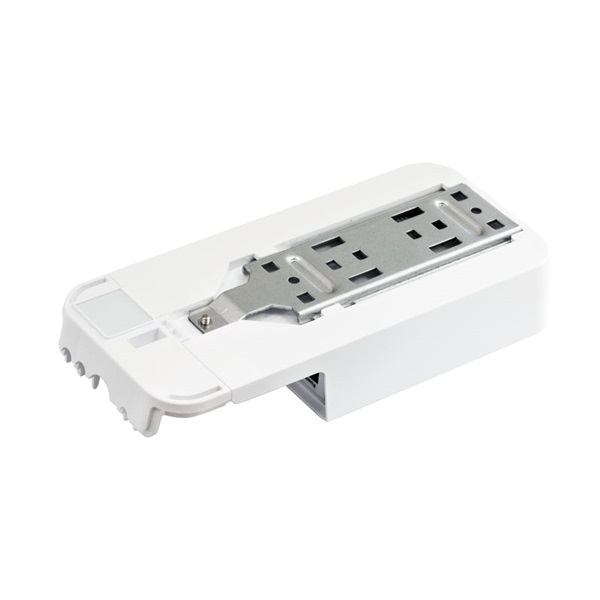

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case - so that it is securely attached to it’s mounting location.

We have two versions available.

- RBwAPG-5HacT2HnD (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

- RBwAPG-5HacT2HnD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

Specifications

Details
Product code RBwAPG-5HacT2HnD
Architecture MIPSBE
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 185 x 85 x 30 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C


Powering

Details
PoE in 802.3af/at
PoE in input Voltage 11-57 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 12 W


Wireless

Details
AC speed AC1600
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 5
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 5 GHz Max data rate 1300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model QCA9556
Wireless 5 GHz number of chains 3
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9880


Ethernet

Details
10/100/1000 Ethernet ports 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -95
11MBit/s 25 -90
6MBit/s 25 -95
54MBit/s 23 -80
MCS0 25 -95
MCS7 22 -74

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 25 -81
MCS0 25 -96
MCS7 24 -77
MCS9 23 -72



Included parts
